Star and Mesh Network Topologies
Subtopic 1: Star Network Topology

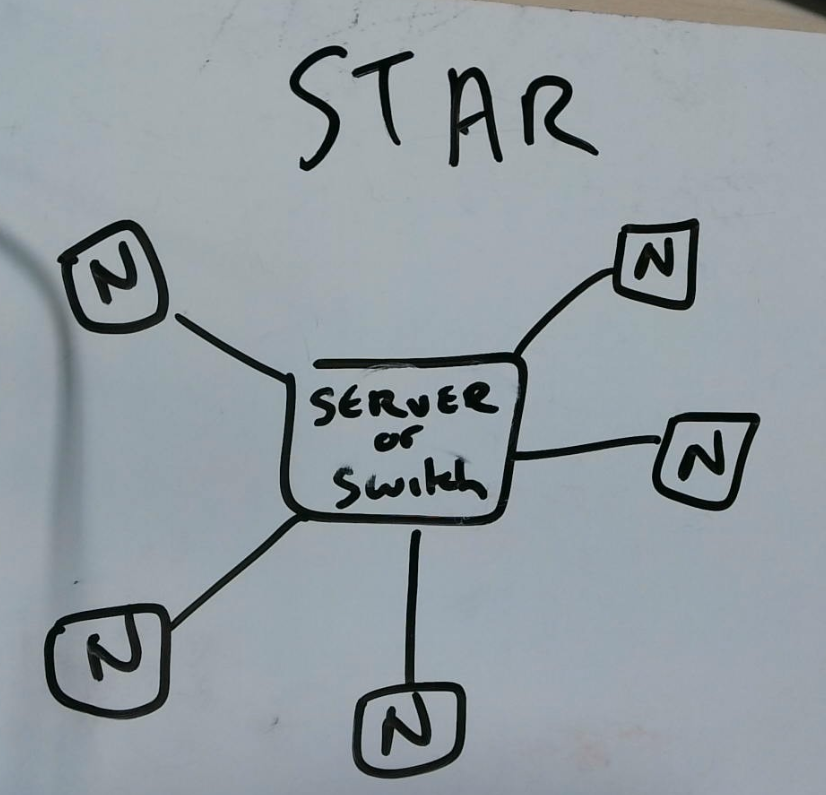

In a star network topology, all devices are connected to a central hub or switch.
Each device in the network communicates directly with the hub or switch, which manages and controls the flow of data between devices.
The significance of a star network topology is that it allows for easy management and troubleshooting, as any issues with one device can be isolated and resolved without affecting the rest of the network.
Practice question: What is a star network topology and how does it work? What are some advantages of using a star network topology?
Subtopic 2: Mesh Network Topology

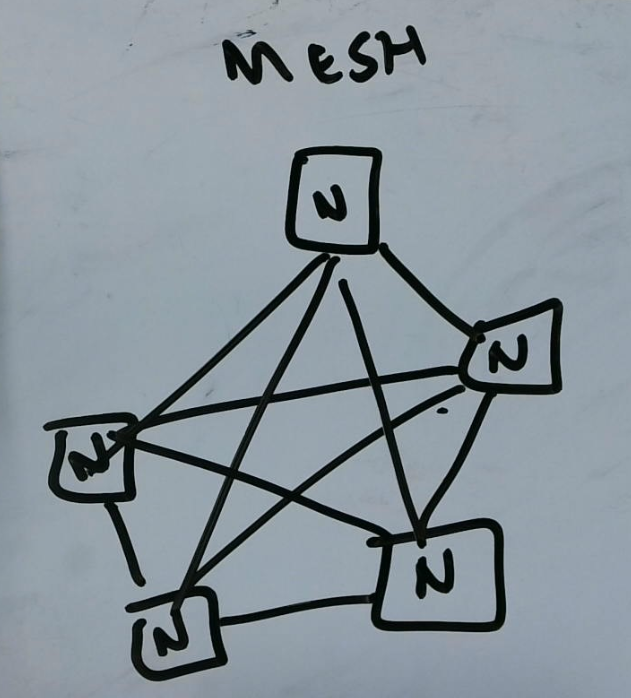

In a mesh network topology, each device is connected directly to every other device in the network.
This allows for multiple pathways for data to travel between devices, providing redundancy and increasing the overall reliability of the network.
The significance of a mesh network topology is that it provides a highly resilient and fault-tolerant network, as even if one or more devices fail, the rest of the network can still function.
Practice question: What is a mesh network topology and how does it work? What are some advantages of using a mesh network topology?
Subtopic 3: Advantages of Star Network Topology
Easy management and troubleshooting
Centralized control and management
High performance and low latency due to direct connections
Can handle high traffic loads
Easy to add or remove devices without disrupting the rest of the network

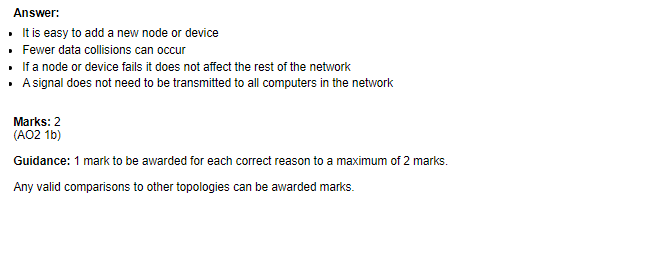

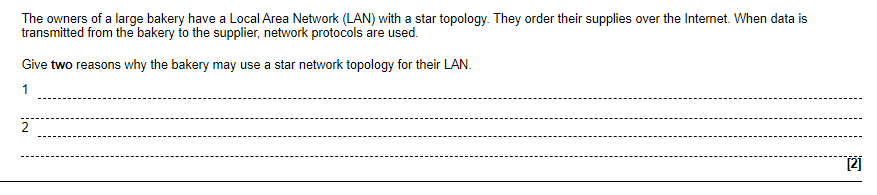

Practice question: What are some advantages of using a star network topology? Give examples of situations where a star network topology would be beneficial.
Subtopic 4: Disadvantages of Star Network Topology
Dependent on the central hub or switch; if it fails, the entire network can fail
Limited scalability due to the number of connections that the hub or switch can support
Can be expensive to implement and maintain
Practice question: What are some disadvantages of using a star network topology? Give examples of situations where a star network topology may not be the best choice.
Subtopic 5: Advantages of Mesh Network Topology
High reliability and fault-tolerance
Multiple pathways for data to travel, providing redundancy
Easy to expand and add new devices without disrupting the rest of the network
Self-configuring and self-healing, with devices automatically rerouting data if one or more devices fail
Practice question: What are some advantages of using a mesh network topology? Give examples of situations where a mesh network topology would be beneficial.
Subtopic 6: Disadvantages of Mesh Network Topology
Can be complex and difficult to manage
High latency and lower performance due to multiple hops between devices
Can be expensive to implement and maintain
Practice question: What are some disadvantages of using a mesh network topology? Give examples of situations where a mesh network topology may not be the best choice.
Overall, understanding the differences between star and mesh network topologies, and their advantages and disadvantages, is important for designing and implementing reliable and efficient computer networks. By considering the needs and requirements of a specific network, students can choose the most appropriate topology and optimize its performance and reliability.
