1.3.2.3 IP and MAC Adresses
In computer networking, IP and MAC addresses are used to identify devices and facilitate communication between them. Understanding how IP and MAC addressing work is important for anyone studying computer science, as it provides a foundation for understanding how networks function. In this study guide, we will explore IP addressing and MAC addressing, including the format of IP addresses, the differences between IPv4 and IPv6, and the role of MAC addresses within a network.
Section 1: IP addressing IP (Internet Protocol) addressing is a method used to identify devices on a network. Each device is assigned a unique IP address, which consists of a series of numbers separated by periods. An IP address can be either IPv4 or IPv6.
IPv4 addresses are made up of four sets of numbers, each ranging from 0 to 255. For example, an IPv4 address might look like this: 192.168.0.1. IPv4 addresses are limited in number and are becoming increasingly scarce.
IPv6 addresses are longer than IPv4 addresses and are made up of eight groups of hexadecimal digits separated by colons. For example, an IPv6 address might look like this: 2001:0db8:85a3:0000:0000:8a2e:0370:7334. IPv6 addresses allow for a much larger number of possible addresses than IPv4.
Practice question 1: What is an IP address and what are the differences between IPv4 and IPv6?
Answer: An IP address is a unique identifier assigned to devices on a network. IPv4 addresses are made up of four sets of numbers, while IPv6 addresses are longer and consist of eight groups of hexadecimal digits separated by colons. IPv4 addresses are becoming scarce, while IPv6 addresses allow for a much larger number of possible addresses.
Section 2: MAC addressing A MAC (Media Access Control) address is a unique identifier assigned to a device's network interface. Unlike an IP address, which can be changed, a MAC address is permanently assigned to the device at the factory. MAC addresses consist of six pairs of hexadecimal digits separated by colons or hyphens.
MAC addresses are used by devices on a network to communicate with each other. When a device sends a message, it includes the MAC address of the recipient in the message. The recipient device uses this MAC address to identify the sender and respond appropriately.
Practice question 2: What is a MAC address and how is it used within a network?
Answer: A MAC address is a unique identifier assigned to a device's network interface. MAC addresses are used by devices on a network to communicate with each other. When a device sends a message, it includes the MAC address of the recipient in the message. The recipient device uses this MAC address to identify the sender and respond appropriately.
Section 3: IP addressing and MAC addressing IP and MAC addresses work together to facilitate communication between devices on a network. When a device sends a message to another device on the network, it includes the IP address of the recipient and the MAC address of the next device on the network. The recipient device uses the IP address to identify the intended recipient, while the next device on the network uses the MAC address to forward the message to the correct device.
Practice question 3: How do IP addresses and MAC addresses work together to facilitate communication between devices on a network?
Answer: When a device sends a message to another device on the network, it includes the IP address of the recipient and the MAC address of the next device on the network. The recipient device uses the IP address to identify the intended recipient, while the next device on the network uses the MAC address to forward the message to the correct device.
Section 4: Conclusion IP and MAC addressing are essential components of networking and play an important role in facilitating communication between devices. By understanding the format of IP addresses, the differences between IPv4 and IPv6, and the purpose of MAC addresses, students can gain a deeper understanding of how networks function. As they prepare for the GCSE Computer Science exam, students can use this study guide to review and practice their understanding of IP and MAC addressing.
Practice question 4: What is the purpose of IP and MAC addresses in computer networking?
Answer: IP and MAC addresses are used to identify devices on a network and facilitate communication between them. IP addresses are used to identify the recipient of a message, while MAC addresses are used to forward the message to the correct device.

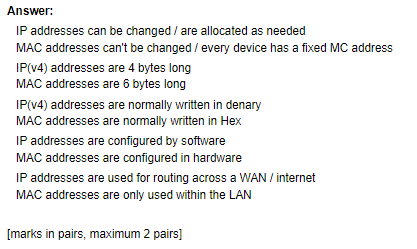

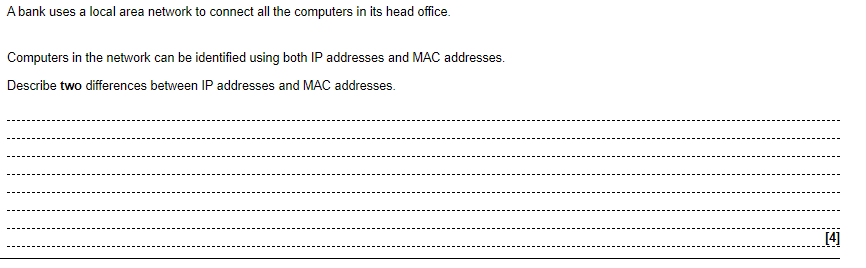

Past Paper Questions
